Fortnite Procedural Construction Animation Shader

This shader is loosely based on the one that was presented by the Fortnite developers in their GDC talk:
Inner Working Of Fortnite's Shader-Based Procedural Animations.

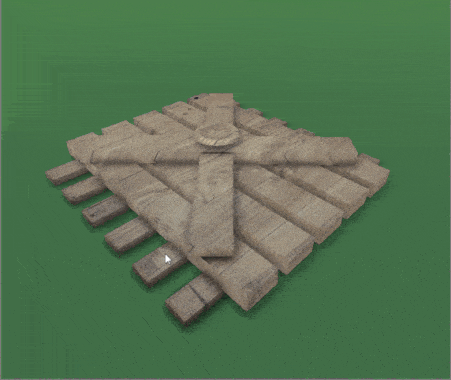

Here is what we will end up with:

This technique requires you to author the 3D model in a certain way, More or less how those Fortnite developers did. So we need the authored 3D model and the shader that uses data we get from the model to achieve the desired effect.

There are some nuances here and there so make sure you don't miss out on the details.😗
The first step will be preparing the 3D model and putting in the required data. I used Blender 2.79 but any 3D modeling software would do.

3D Model Preparation

Model it

Apply vertex Colors

For the direction of flight each color is a component of a vector (x, y, z). This will be considered as local space.
Values range from -1.0 to +1.0 for each component.
Negative values are achieved by using values of less than 0.5 and positive values with values greater than 0.5.
Assume val : Range from 0.0 - 1.0
You can use your own mapping such as (val - 0.5) * 2.

• Gives -1.0 if val was 0.0
• Gives +1.0 if val was 1.0
• Gives 0.0 if val was 0.5
• Gives 0.5 if val was 0.75
• Gives -0.5 if val was 0.25

Basically :
(0.0 , 0.5) maps to (-1.0 , 0.0)
(0.5 , 1.0) maps to (0.0 , 1.0)
The mapping I've used :

• Gives 0.0 if val was 0.5
• Gives +1.0 if val was 1.0
• Gives 0.0 if val was 0.0
• Gives 0.5 if val was 0.75
• Gives -0.5 if val was 0.25
• Gives -1.0 if val was 0.4999 (less than 0.5 but tending towards it)

Basically :
(0.0 , 0.5) maps to (0.0 , -1.0)
(0.5 , 1.0) maps to (0.0 , 1.0)

UV Channel 1

For applying timing textures and rotation amount.
The UV map is difficult to see, I suggest zooming in. Those dots placed are each of the separate vertex sections that make up the mesh.
Shown here : Red channel = x position of UV & Green channel = y position of UV

• The greater the UV's x coordinate of a vertex the later movement of the vertices will start ( assuming the initial stage was having all pieces together )
• The greater the UV's y co-ordinate the more rotations about the local z-axis it will do.

UV Channel 2

Actual texture map.
The texture used can be found here: Pexels - Antique Backdrop

Fortnite construction surface shader

We will be using a surface shader as our base. So go ahead and create one.

1 . Defining our properties

Properties
{
 _Color ("Color", Color) = (1,1,1,1)
 [HideInInspector]_MainTex("Main texture", 2D) = "white"{}
 _ActualTex("Actual Texture", 2D) = "white"{}
 _Glossiness ("Smoothness", Range(0,1)) = 0.5
 _Metallic ("Metallic", Range(0,1)) = 0.0
 _Placement("Placement value", Range(-0.0, 100.0)) = 0.0
}

We don't actually end up using _MainTex in our shader, But we need to declare it here due to quirks of using a secondary UV channel.
Since we don't end up using it we can hide it in the inspector with [HideInInspector] attribute.

2 . Input struct and CG Declarations

sampler2D _ActualTex;
sampler2D _MainTex;
half _Glossiness;
half _Metallic;
fixed4 _Color;
float _Placement;

struct Input
{
 float2 uv_MainTex; // UV co-ordinates for our timing & rotation about z-axis
 float2 uv2_ActualTex; // 2nd UV co-ordinate used for the actual texturing purposes
 float4 color : COLOR; // Vertex color
};

3 . Helper functions

float3 ConvertToDir(float3 val)
{
 val.x = lerp(-val.x * 2, (val.x - 0.5) * 2, step(0.5, val.x));
 val.y = lerp(-val.y * 2, (val.y - 0.5) * 2, step(0.5, val.y));
 val.z = lerp(-val.z * 2, (val.z - 0.5) * 2, step(0.5, val.z));
 //In case it's not clear, With a conditional statement : val.z = (val.z < 0.5)? -val.z * 0.5 : (val.z -0.5) * 2;
 //Alternative mapping : val.z = (val.z - 0.5) * 0.5;
 val = normalize(val);
 return val;
}

float4 RotateAroundZInDegrees (float4 vertex, float degrees)
{
        //Creating a rotation matrix to multiply with our vertex position
 float angle = radians(degrees);
 float c = cos(angle);
 float s = sin(angle);
 float4x4 rotateZMatrix = float4x4(c,-s,0,0,
        s,c,0,0,
        0,0,1,0,
        0,0,0,1);
 return mul(vertex , rotateZMatrix);
}

4 . The vertex shader

void vert (inout appdata_full v)
{
 /*1*/float val = max((_Placement - v.texcoord.x * 100), 0);
 /*2*/v.vertex = RotateAroundZInDegrees(v.vertex, val * v.texcoord.y * 100);
 /*3*/v.vertex.xyz += ConvertToDir(v.color.xyz) * val;
}

Note:
The _Placement value is the value that determines where our vertices end up.
v.texcoord.x:- Timing value, Determines when the movement of the vertices for that vertex starts (Range : 0.0 - 1.0).
v.texcoord.y:- The amount of rotation to be applied (Range : 0.0 - 1.0).
When _Placement value crosses the threshold value set by v.texcoord.x * 100 only then the vertex moves.
The lower the value of val less the rotation applied on the vertex.
The ConvertToDir(v.color.xyz) function takes in vertex color and converts that into a direction for the vertex to move.
Then we multiply with val thereby determining the distance the vertex moves in that direction.

5 . The surface shader

void surf (Input IN, inout SurfaceOutputStandard o)
{
 fixed4 c = tex2D (_ActualTex, IN.uv2_ActualTex) * _Color;
 o.Albedo = c.rgb;
 o.Metallic = _Metallic;
 o.Smoothness = _Glossiness;
 o.Alpha = c.a;
}

Nothing mystical happening here. Sampling our texture with the correct texture map and UV coordinates.

6 . Vertex shader declaration and shadow pass

#pragma surface surf Standard fullforwardshadows vertex:vert addshadow

We need to declare our vertex function with vertex:vert since our vertex function is called vert.
We are modifying our vertices so the shadows won't look correct as it's using Unity's default shadow pass, So we need to tell Unity to use a custom shadow pass which takes into consideration those new vertex positions; To do this addshadow is used in our #pragma.

Here is the entire shader code:

1Shader "BitshiftProgrammer/SurfaceFortnite" // Goto www.bitshiftprogrammer.com for more
2{
3	Properties
4	{
5		_Color ("Color", Color) = (1,1,1,1)
6		[HideInInspector]_MainTex("Main texture", 2D) = "white"{}
7		_ActualTex("Actual Texture", 2D) = "white"{}
8		_Glossiness ("Smoothness", Range(0,1)) = 0.5
9		_Metallic ("Metallic", Range(0,1)) = 0.0
10		_Placement("Placement value", Range(-0.0, 100.0)) = 0.0
11	}
12	SubShader
13	{
14		Tags { "RenderType"="Opaque" }
15		LOD 200
16
17		CGPROGRAM
18		#pragma surface surf Standard fullforwardshadows vertex:vert addshadow
19		#pragma target 3.0
20
21		sampler2D _ActualTex;
22		sampler2D _MainTex;
23
24		half _Glossiness;
25		half _Metallic;
26		fixed4 _Color;
27		float _Placement;
28
29		struct Input
30		{
31			float2 uv_MainTex; // UV co-ordinates for our timing & rotation about z-axis
32			float2 uv2_ActualTex; // 2nd UV co-ordinate used for the actual texturing purposes
33			float4 color : COLOR; // Vertex color
34		};
35
36		UNITY_INSTANCING_BUFFER_START(Props)
37		UNITY_INSTANCING_BUFFER_END(Props)
38
39		float3 ConvertToDir(float3 val)
40		{
41			val.x = lerp(-val.x * 2, (val.x - 0.5) * 2, step(0.5, val.x));
42			val.y = lerp(-val.y * 2, (val.y - 0.5) * 2, step(0.5, val.y));
43			val.z = lerp(-val.z * 2, (val.z - 0.5) * 2, step(0.5, val.z));
44
45			val = normalize(val);
46			return val;
47		}
48
49		float4 RotateAroundZInDegrees (float4 vertex, float degrees)
50		{
51			float angle = radians(degrees);
52			float c = cos(angle);
53			float s = sin(angle);
54			float4x4 rotateZMatrix	= float4x4(	c,	-s,	0,	0,
55											 	s,	c,	0,	0,
56								  				0,	0,	1,	0,
57												0, 0, 0, 1);
58			return mul(vertex , rotateZMatrix);
59		}
60
61		void vert (inout appdata_full v)
62		{
63			float val = max((_Placement - v.texcoord.x * 100), 0);
64			v.vertex = RotateAroundZInDegrees(v.vertex, val * v.texcoord.y * 100);
65			v.vertex.xyz += ConvertToDir(v.color.xyz) * val;
66		}
67
68		void surf (Input IN, inout SurfaceOutputStandard o)
69		{
70			fixed4 c = tex2D (_ActualTex, IN.uv2_ActualTex) * _Color;
71			o.Albedo = c.rgb;
72			o.Metallic = _Metallic;
73			o.Smoothness = _Glossiness;
74			o.Alpha = c.a;
75		}
76		ENDCG
77	}
78	FallBack "Diffuse"
79}
